Beschreibung
Beschreibung
Druckanforderungen
von LayerHub Jetzt ist er lebendig. Gemeinschaftsgebautes Zuhause für Filamentpräsenzen — Offen für jede Filamentmarke, jede Drucker. Jeder Präset kommt mit einem echten Druckfoto, um es zu beweisen.
Druckeinstellungen
Druckeinstellungen
Fiberon™ ASA-CF08
Schlüsselfunktionen
- hohe Stärke für Funktionsteile
- Hoch Hitzebeständigkeit
- Sehr gut Oberfläche
- High-Speed, Low-Warp Druck
- Außendauer
Fiberon™ ASA-CF08 - Schwarz / 0,5 kg ist nachbestellt und wird versendet, sobald es wieder auf Lager ist.
Das könnte Ihnen auch gefallen
![Polymaker ASA 1.75mm 3D-Druckfilament - Pop Blue]()
Von $24.99Stückpreis /Nicht verfügbar![Fiberon PET-GF15 1.75mm 3D Drucker für Filamenten Polymaker zeigen Spule (f., pl. Spulen) Gewicht, Farbe]()
Von $29.99Stückpreis /Nicht verfügbar
Technische Daten
Alles, was Sie brauchen, bevor Sie auf „Drucken“ klicken
Drucktips
- Verwenden Sie eine verschleißfeste Düse, beispielsweise aus gehärtetem Stahl oder Rubin, da die Kohlefaserverstärkung abrasiv wirkt.
- Lagern und drucken Sie unter trockenen Bedingungen (relative Luftfeuchtigkeit unter 20 %); trocknen Sie das Material vor der Verwendung 6 Stunden lang bei 90 °C.
- Verwenden Sie einen geschlossenen Drucker in einem gut belüfteten Bereich mit geeigneter Filterung, um die Belastung durch Gerüche und flüchtige organische Verbindungen zu reduzieren. Schalten Sie den Lüfter zur Kühlung AUS.
- Lassen Sie das Teil vor dem Entfernen von der Bauplatte auf natürliche Weise abkühlen.
- Da das Filament spröde ist, muss sein Biegungsdurchmesser beim Zuführen mehr als 60 mm betragen.
| Eigenschaft | X-Y | Z | Wert | Prüfmethode |
|---|---|---|---|---|
| Dichte | — | — | 1.094 g/cm³ Wichtig | ISO 1183 |
| Zugfestigkeit | 43.51 MPa Wichtig | 24.95 MPa Wichtig | — | ISO 527 |
| Bruchdehnung | 1.78 % Wichtig | 2.68 % Wichtig | — | ISO 527 |
| Biegefestigkeit | 69.06 MPa Wichtig | 46.46 MPa Wichtig | — | ISO 178 |
| Biegemodul | 3264.99 MPa Wichtig | 1743.42 MPa Wichtig | — | ISO 178 |
| Elastizitätsmodul | 3611.66 MPa Wichtig | 1903.75 MPa Wichtig | — | ISO 527 |
| Charpy-Schlagzähigkeit, ungekerbt | 10.99 KJ/m² Wichtig | 11.86 KJ/m² Wichtig | — | ISO 179 |
| Charpy-Schlagzähigkeit, gekerbt | 5.46 KJ/m² Wichtig | — | — | ISO 179 |
| Glasübergangstemperatur (Tg) | — | — | 106.58 °C Wichtig | ISO 11357 |
| Vicat-Erweichungstemperatur | — | — | 111.8 °C Wichtig | ISO 306 |
| HDT (0.45 MPa) | — | — | 103.1 °C Wichtig | ISO 75 |
| HDT (1.8 MPa) | — | — | 97.5 °C Wichtig | ISO 75 |
Getestet an Prüfkörpern mit 100 % Füllung. X-Y = quer zu den Schichten, Z = zwischen den Schichten (Schichthaftung).
Häufig gestellte Fragen
Fragen? Wir haben die Antworten. Von der Auswahl des richtigen Materials bis zur Pflege deiner Spulen findest du hier alles, was du wissen musst, an einem Ort.
Was ist ASA-CF08?
Welche Arten von Projekten sind am besten geeignet?
Wie wärmebeständig ist es?
Wie stark ist es?
Brauche ich einen beheizte Kammer?
Wird es meine Düse ausziehen?
Absorbiert es Feuchtigkeit?
Erzeugt es Rauch oder Geruch?
ist es ESDund sicher?
Was Stützmaterial am besten funktioniert?
Ist ASA-CF08 AMS kompatibel?
Welche Farben sind verfügbar?
Ja, aber die Ergebnisse sind weniger konsistent. Für die Zuverlässigkeit wird die Verwendung eines Schlosses empfohlen. Braucht es Anneeling?
Reviews
This 3D printing material delivers exceptional results with carbon fiber reinforcement. Customers praised its "beautiful" prints, excellent surface finish, and ease of use. The carbon fiber eliminates typical warping and adhesion issues. However, some noted color inaccuracies—grays appear blue-tinted and reds look purple. Occasional clogging from oversized carbon chunks reported.

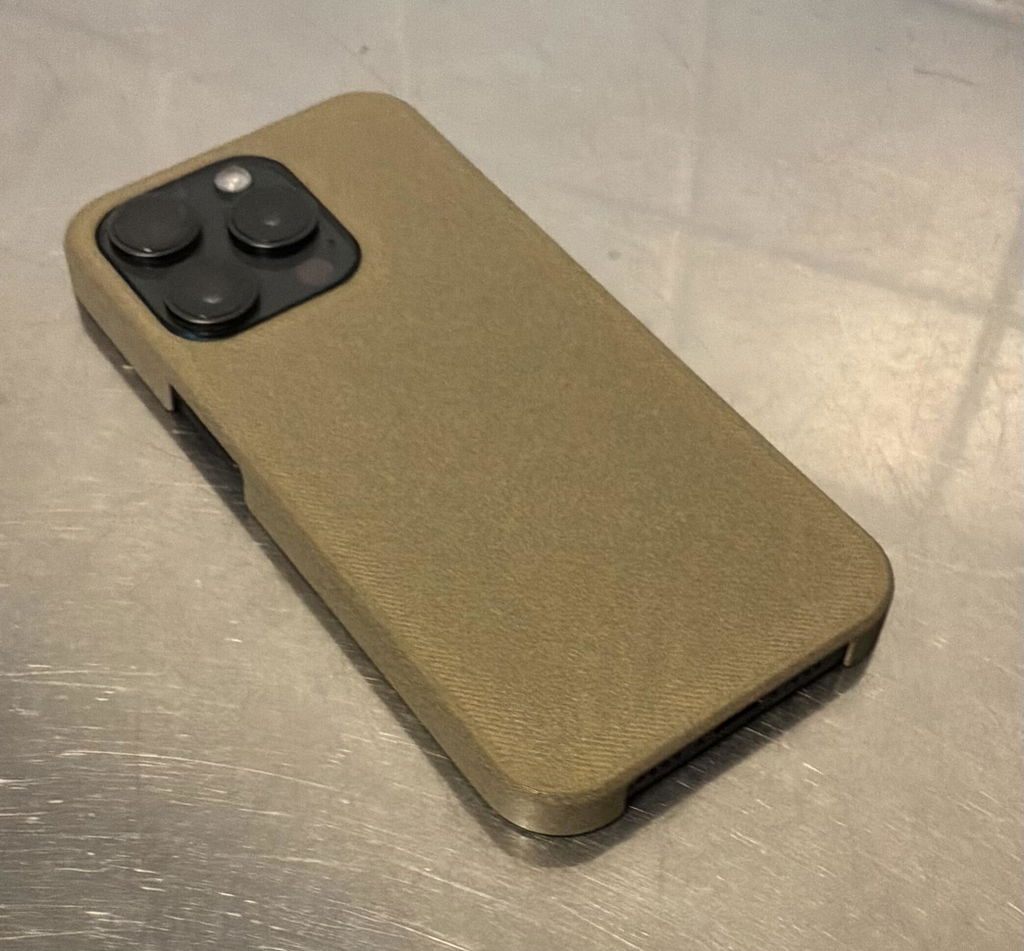

Ich habe mir für mein iPhone damit eine Hülle gedruckt und die Farbe ist richtig gut. Auch die Layerhaftung und die Druckbarkeit sind unübertroffen :)
This stuff is legit, very easy to print and super tough. Happy printing!
Loving this filament. I've used about 20 spools so far and they've all come out great! Definitely needs to be printed with a 0.6mm nozzle. The 0.4mm nozzles would clog occasionally. And the filament is very stiff and brittle, so need to avoid tight bends in the PTFE tubes. But I haven't had any issues using it in my Bambu AMS 2.
High quality good customer service.
This filament prints easily with great results. The matte finish looks good, hides layer lines, and feels good in the hand.
It took some time to be able to successfully print with this material. While I thought that I understood that this ASA-CF was brittle, I was still a couple of orders of magnitude from being successful. CS assisted tremendously in figuring out what I needed to change with the Core One in order to print. I had to raise the spool so that the Nextruder was feeding with gravity instead of pulling filament up and over. I also had to back way off on the tension of the Nextruder. Once it was printing, it did so beautifully! Gorgeous, strong parts with no further issues... I have since ordered two more rolls.
Love it.
Prints great on my x2d and my works H2D
This is my new go-to filament. I work in maintenance and fabrication, especially for mechanical and exterior parts. I needed something easy to print, strong yet slightly flexible, and UV/weather resistant. This stuff is exceptional! Prints are so clean without needing any glue, rafts, or brims. I have been super happy with it, and I'm glad to see more colors. Printing on a Bambu P1S with an Obsidian head and textured spring plate.
Best filament on the market
I've tried to print this part twice and failed. The second time, I used glue on the heated bed, but it still warped. My printer is a BBL P2S; I don't know if you have any idea what the problem is. I've wasted 500g of glue, and it's still no good.
Hey! Looks like we were able to reach out and help on this via email. If your replacements ever have issues or you have any questions at all - don't hesitate to reach back out via that email!
Very impressed with the surface texture and appearance of my parts. I used this material for an outdoor transformer enclosure and it came out great. Printing was super easy on my P1S. As expected from my favorite filament brand.
Works well with expected results.
Prints pretty well. The profile did not work on the p1s and I had to modify it to make it work. I had to slow the flow down to .9 and even then it still pulls up some of the infill. So I had to slow it down to 50% speed.
Its on me that I didn't see the spool wasn't 1kg. I am not sure why they are shipping half spools of this stuff.
The dark red is a bit off, it is brick red and I thought it was going to be more red than it actually was. The finished prints look pretty good but took way too long.
I won't be buying it again.
Very sorry if you had printing issues or you do not like the color! We have tested those profiles so I wonder why you are having these issues with flow. As for half spools - the filament is brittle so we need to make the core of the spool larger to not have it turn at too tight of an angle. This larger core means that 1KG of filament does not fit on a 1KG spool.
Feel free to reach out to us on the email listed on the spool and we can help troubleshoot or replace faulty products!
I am totally sold on Fiberon. Popped it in my printer and ran it with my regular CF profile. Great results. Easy to manage. Worth the price for me to get quality results.
Stuff works great
Solid print and looks good. Can't wait to try the other colors
Ya de por sí el ASA tiene baja tendencia a despegarse de la cama y con las partículas de carbono, este se levanta a un menos. Simplemente me encanta que genere menos olor que el ABS, es extremadamente preciso, ideal para piezas de impresoras 3D y otras aplicaciones donde la precisión sea prioridad.
Surface finish came out great and pretty easy to work with
Hello,
I'm interested in using your asa-cf for a startup product.
I was wondering:
- Would you garuntee restock for high volume orders?
- Would you do a custom color at volume?
Thanks!
Blake
For larger orders we would suggestion going through our wholesale site: https://us-wholesale.polymaker.com/
Custom colors might be possible (ASA-CF is a bit odd because the CF will give a black color - so might not be entirely possible) but we have a very large MOQ and lead time for that.
The official print profile for this filament with the Core One is for a 0.3mm layer height. Can I go down to 0.2mm layer height or will I run into issues because of the fibers?
0.2mm layer heights should work just fine. The bigger issue is that we do not suggest going much lower than a 0.4mm nozzle.
How long does this take to dry
If the material has absorbed moisture - 90˚C for 6h in a convection oven. With a good filament dryer with good airflow - you can reduce that to 70˚C
