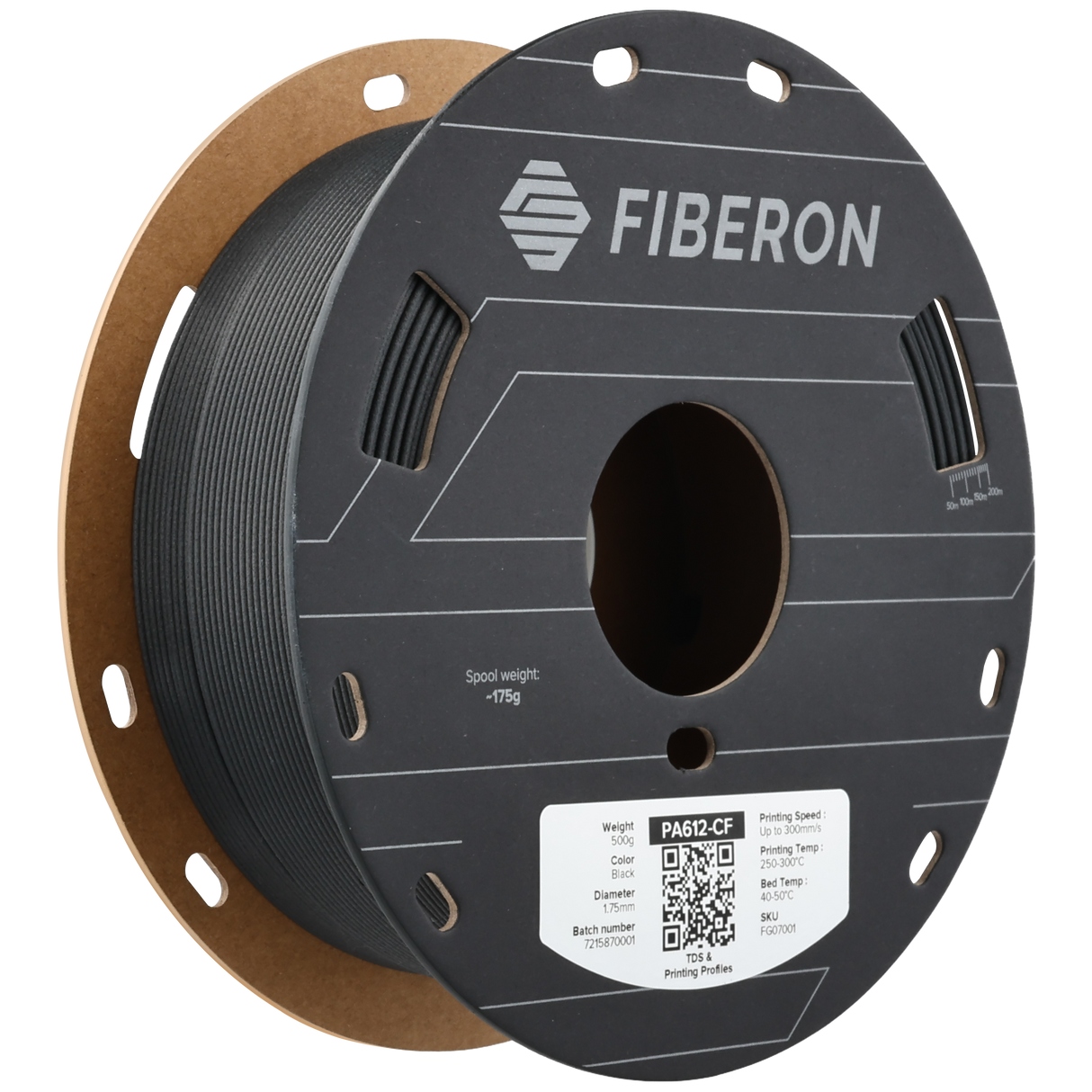

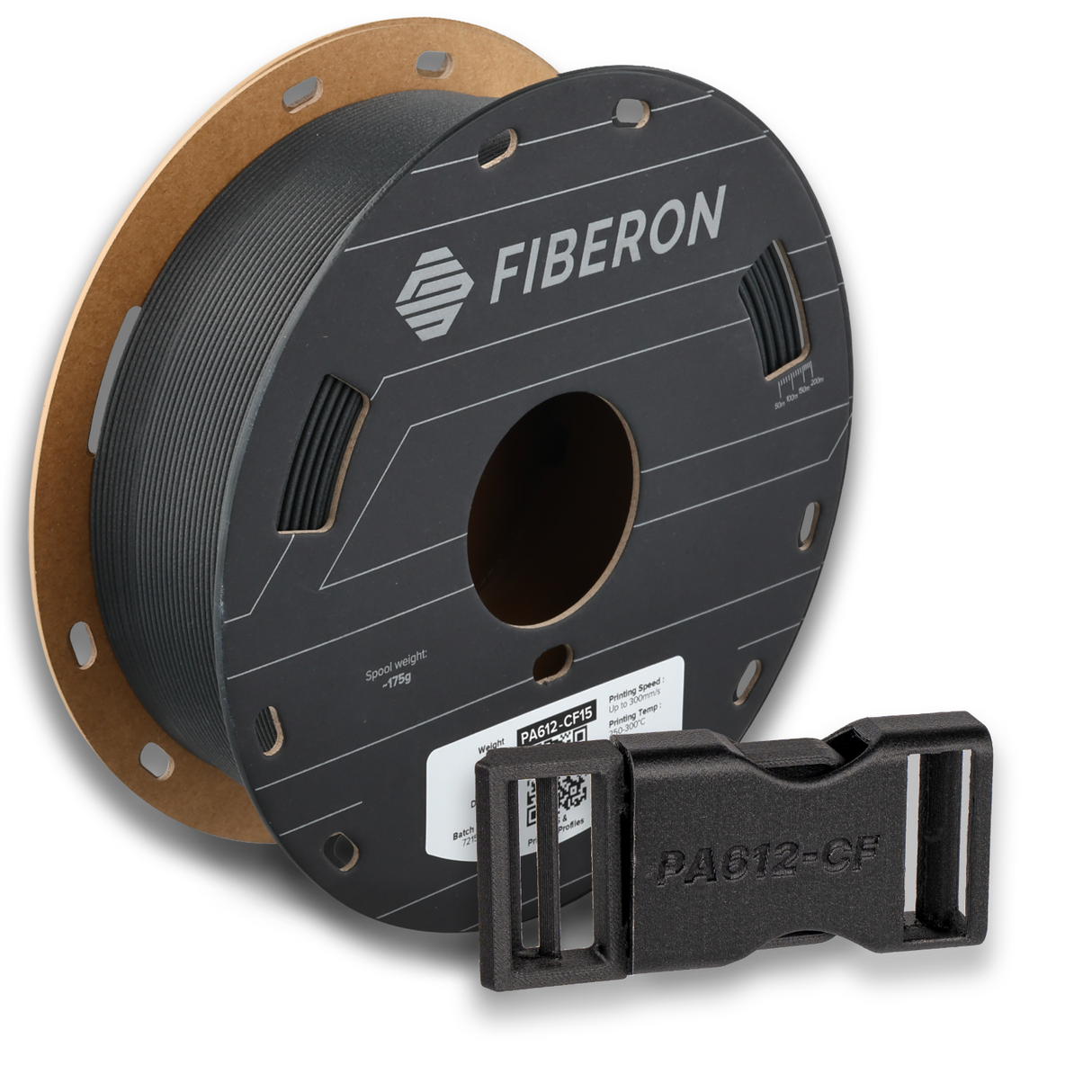

Fiberon™ PA612-CF15: Advanced Carbon Fiber Reinforced PA612 Filament

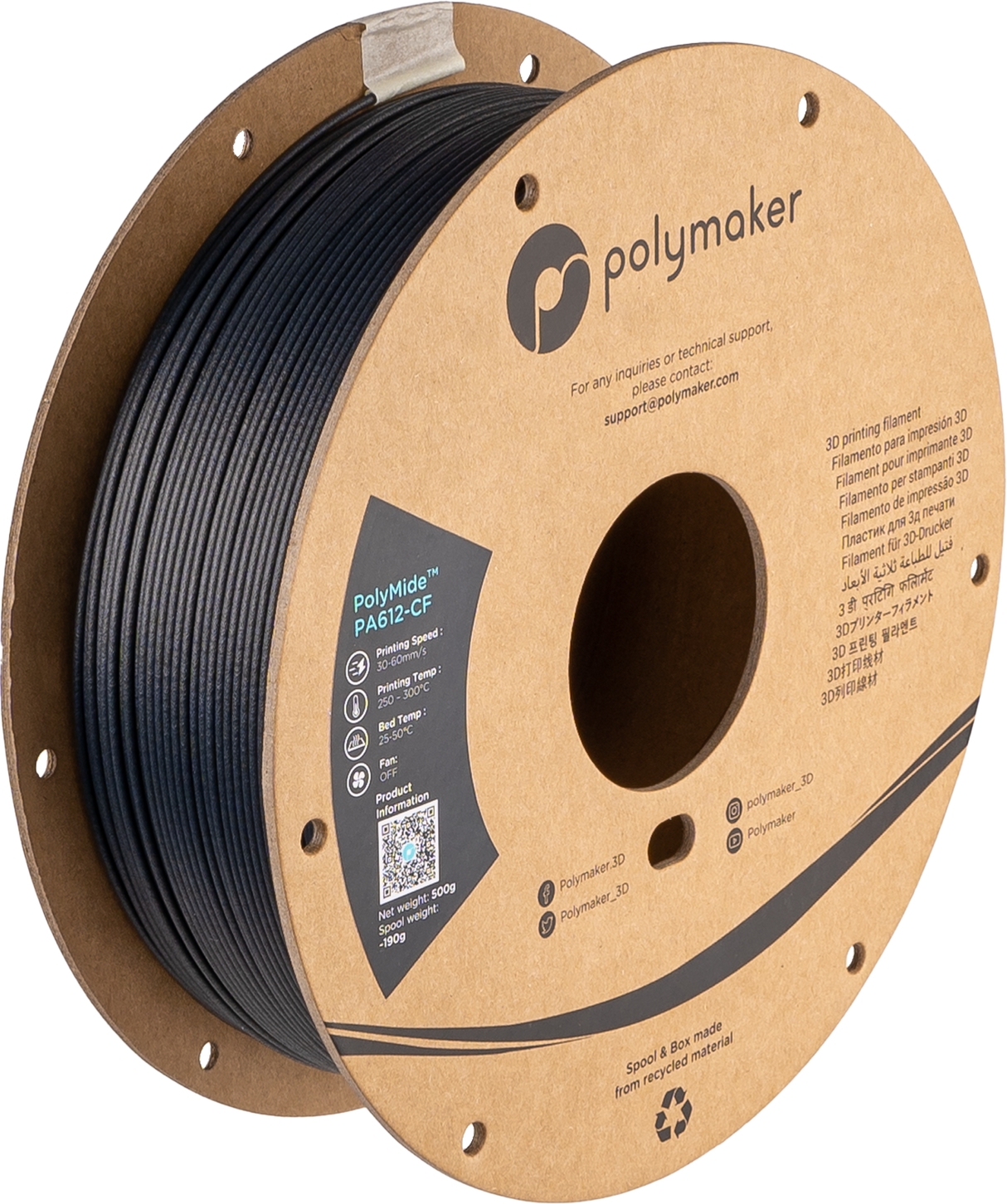

Superior Engineering Performance (Formerly PolyMide™ PA612-CF)
Fiberon™ PA612-CF15 is a carbon fiber reinforced long-chain copolyamide (PA612) filament designed for high-performance engineering applications. Its unique chemical structure results in significantly lower moisture sensitivity than traditional PA6/66 and PA6-based nylons, while offering better mechanical properties than PA12-based materials.
Key Features and Advantages
- Low Moisture Sensitivity: Maintains dimensional accuracy and mechanical strength, even in humid environments, reducing the need for frequent drying.
- Enhanced Mechanical Properties: Outperforms PA12-based filaments in tensile strength, stiffness, and durability, making it ideal for demanding functional parts.
- Carbon Fiber Reinforcement: 15% carbon fiber content delivers excellent rigidity, high strength, and improved thermal stability.
- Warpfree™ Technology: Proprietary formulation minimizes warping and enhances print size stability, even on large or complex parts.
- Consistent Quality: Fiberon™ PA612-CF15 is the same trusted formula as PolyMide™ PA612-CF, though it may print in a slightly darker black shade.
Ideal for Industrial and Engineering Applications

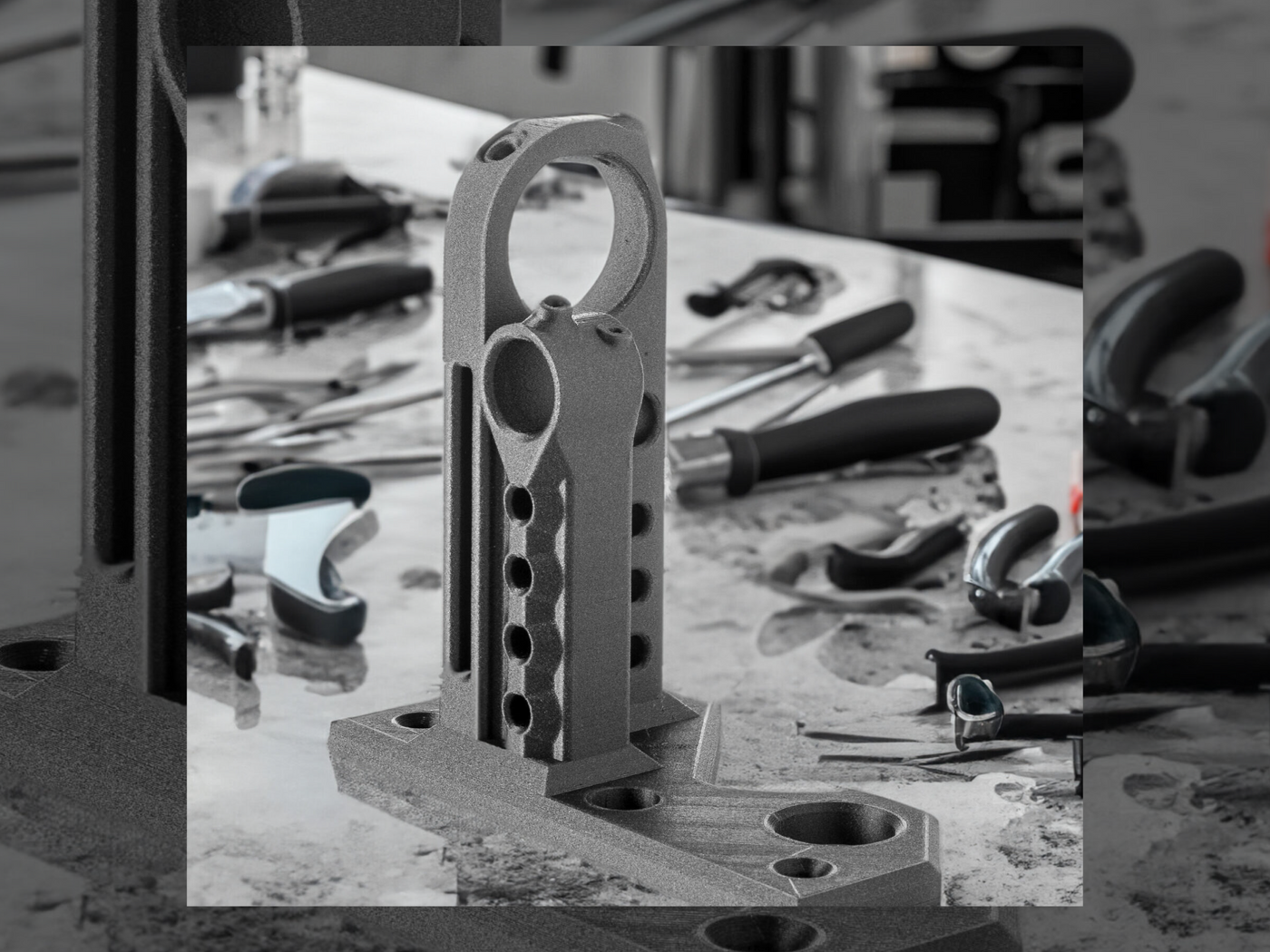

Perfect for automotive, aerospace, robotics, jigs, fixtures, and end-use components where dimensional stability, moisture resistance, and mechanical performance are critical.
Choose Fiberon™ PA612-CF15 for your most demanding projects when you need a carbon fiber nylon that combines low moisture sensitivity, superior mechanical properties, and exceptional print reliability.
Fiberon™ PA612-CF15 is the same great formula as PolyMide PA612-CF, although Fiberon™ PA612-CF15 may print in a slightly darker black shade color than its predecessor.
Printing Requirements
Print Settings
Print Settings
Fiberon™ PA612-CF15
- Lower Moisture Absorption Than PA6 -
- High Strength & Stiffness
- Carbon Fiber Reinforced
- “Warp-free Technology -
- Ready to Print -
Fiberon™ PA612-CF15 - Black / 0.5kg is backordered and will ship as soon as it is back in stock.
Technical Specifications
Everything you need before you hit print
- Use a wear-resistant nozzle, such as hardened steel or ruby, because the carbon-fiber reinforcement is abrasive.
- Store and print under dry conditions (relative humidity below 20%); dry at 100°C for 10 hours before use.
- Use a 40-50°C build plate, and turn the cooling fan OFF; an actively heated chamber is not required.
- Use glue stick or Magigoo PA if bed adhesion is weak.
- If the material is used as its own support, remove the support before excessive moisture absorption to avoid permanent bonding.
- Anneal at 100°C for 16 hours when the annealed performance stated in the TDS is required.

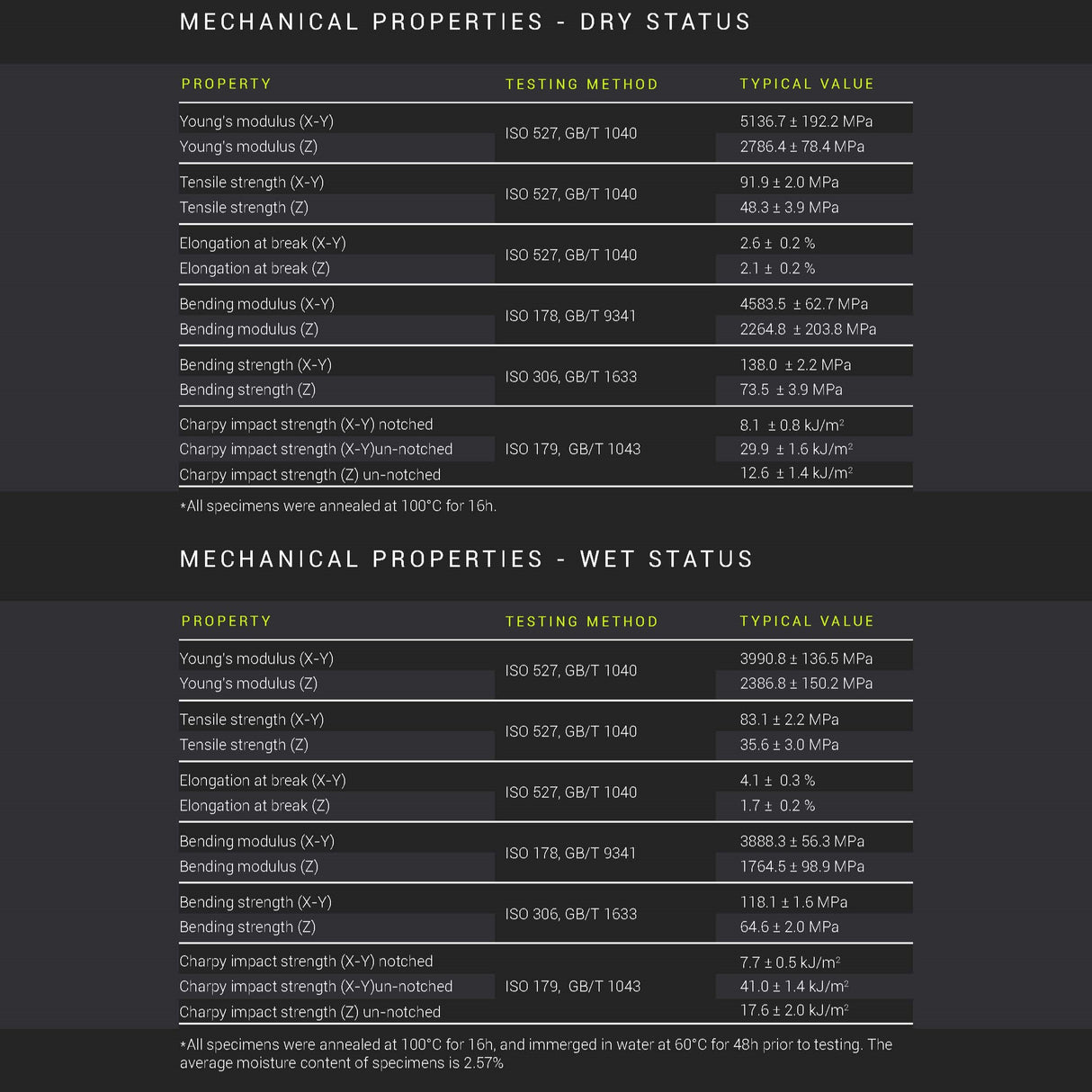

| Property | X-Y | Z | Value | Method |
|---|---|---|---|---|
| Density | — | — | 1.03 g/cm³ Important | ISO 1183 |
| Tensile strength | 91.9 MPa Important | 48.3 MPa Important | — | ISO 527 |
| Elongation at break | 2.6 % Important | 2.1 % Important | — | ISO 527 |
| Bending strength | 138 MPa Important | 73.5 MPa Important | — | ISO 178 |
| Bending modulus | 4583.5 MPa Important | — | — | ISO 178 |
| Young's modulus | 5136.7 MPa Important | 2786.4 MPa Important | — | ISO 527 |
| Charpy, unnotched | — | 12.6 KJ/m² Important | — | ISO 179 |
| Charpy, notched | 8.1 KJ/m² Important | — | — | ISO 179 |

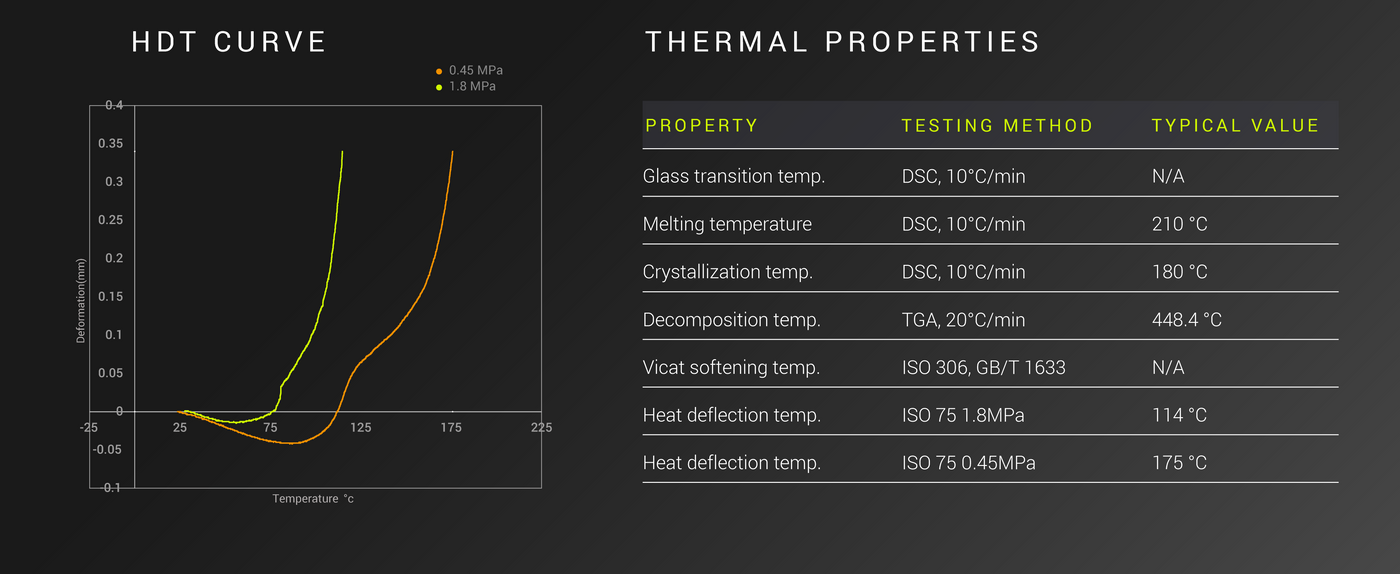

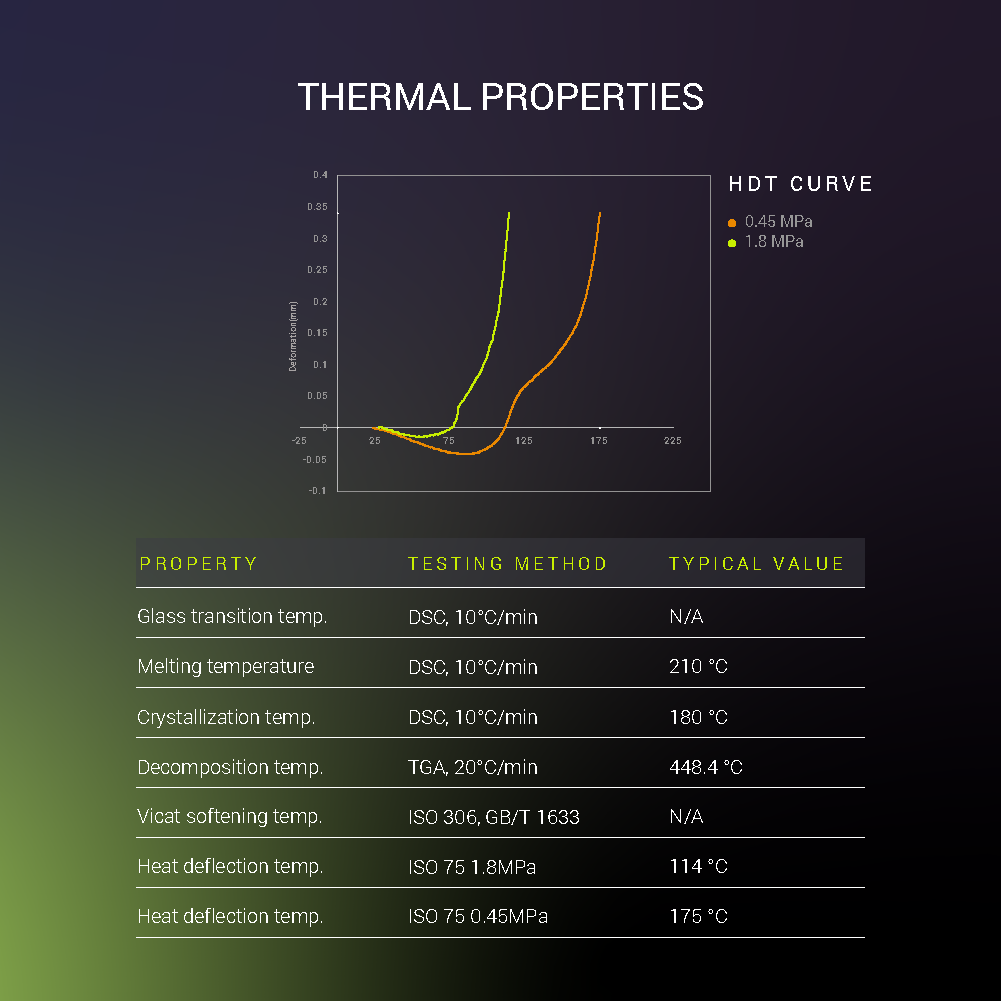

| Melting temperature | — | — | 210 °C Important | ISO 11357 |
| Vicat softening temperature | — | — | 206.2 °C Important | ISO 306 |
Tested on 100% infill specimens. X-Y = across the layers, Z = between the layers (layer adhesion).
Frequently Asked Questions
Got questions? We've got answers. From choosing the right material to caring for your spools, here's everything you need to know in one spot.
What is annealing?
What is moisture conditioning?
Should I anneal before or after moisture conditioning?
Why do you use such a low build plate temperature with your nylons?
Will the spools work in an AMS?
Can you offer 1KG Fiberon™ Spool Options?
Customers praised this carbon fiber-reinforced nylon for "excellent strength and impact resistance" with "zero warping" and "dimensionally perfect prints." Many noted it requires proper drying and printer calibration for best results. Popular for demanding applications including tools and functional parts. Minor feedback mentioned limited spool size options.
High quality easy to print and mechanically strong filament can be used to make gears for rc cars and they last a long time no issues ! It’s just the best of the best!
Incredibly strong and yet super easy to print, and the print quality is unbelievable! amazing stuff!
Noice :-)
You guys always have the best filaments thats why i keep buying for you, perfect for all my applications.
Literally fits in my air fryer/food dehydrator perfectly. Gave it 12 hours at 170f° and it printed beautifully. We shall see if the BCG and charging handle hold up tho with all zhe slapping, ja.
amazing filament, super stong for any aplication
Easy introduction to PA printing and it looks amazing. Supports are easily removable with minimal tuning, no issues with warping, and the parts are incredibly strong. The only reason it is 4/5 stars is due to not having the option to buy a full kg spool or even 2kg or 3kg bulk option. It makes printing a series of prints more convoluted than needed due to having to account for every limited gram on the roll and doubles the end of roll waste unless you have a system with a multi-material unit.
This is my go to filament if I want something that is light weight and stiff. This stuff prints very well, great dimensional stability and the parts look great with the slightly rough surface finish.
Great material, prints fast and clean. No issues that wasn’t my fault.
This is some amazing filament. Incredibly strong and I've been getting beatiful print quality on my P1S. I'd say it handles overhangs better than some PLA I've worked with. Only complaint is it will absorb some moisture over time. I once had it in a drybox that was heated for about 3 days and some holes came out undersized and I could see the affects of the moisture on the print quality. Great price - will continue to buy!
Ich war schon seit der ersten Rolle Panchroma PLA Matte begeistert von Polymaker aber das PA612-CF hat meine Begeisterung noch mal deutlich gesteigert. Dank des Druckprofils von Fiberon/Polymaker ist es super einfach auf dem P2S zu drucken. Lediglich einen Temp-Tower sollte man drucken um die beste Temperatur für sich und das Filament zu finden. Nach dem auspacken ging die Rolle direkt in den AMS HT wo mir eine Restfeuchte von 8% angezeigt wurde, was mega gut ist.
Ich bestelle nur noch Filamente von Polymaker/Fiberon :)
Fehlt nur noch ein PPA-CF im Sortiment welches auch ein Drucker wie der P2S von schafft den Temperaturen her.
Sehr sehr gutes CF Filament und dank des Druckprofils von Polymaker/Fiberon sehr einfach zu drucken auf dem P2S :)
Excellent prints when your printer is dialed in!
I have been very happy with the strength and impact resistance of this material. It is one of my go to filaments now for difficult applications.
5star
is my opinion of this filament. Do with that what you will.
This has reignited my passion for printing. The results after an after couple hours of dialing in the settings have been breathtaking, and I have been printing for over 5 years. The products I have made using this Fiberon filament feels better in the hand, it is good to produce something that can really last.
This is by far my favorite filament for my applications. I live in a very humid environment (Louisiana) and I love the wet properties that you get with this filament. I will choose this over pa6cf any time.
Excellent print quality. Very happy!
This stuff is amazing!
I run a small business and only use Fiberon. Specifically the PA612-CF or PA6-CF
This is easily the best PA-CF material on the market. It prints easily, it's durable as all getout, and it looks great.
AS LONG AS YOU DRY IT PROPERLY! then you're good to go.
Great product
Arrived quickly. Should last a long time. Great stuff to print with when dialed in. 260C nozzle, 60C bed, 30mm/s speed, and 98%extrusion rate for qidi q1pro gives great results.
Quick and easy
Easy to print (as far as PA goes), great results using the recommended settings. I'm using it to print tools, parts, and jigs where PETG just doesn't cut it and if you truly dislike printing ABS (as I do)
Great filament! Will definitely buy again!
Amazing product beyond happy with the quality. MUST keep dry.
In my limited opinion the most durable filament to print under 300C
